Reduce current in Low power mode

Hi,

My task is..

Device will advertise for 20 seconds if there is no connection then it will go to sleep mode for 40 seconds. After 40 seconds it will wake up from sleep mode using timer interrupt and start advertising again for 20 seconds, This cycle continuously runs until device makes BLE connection.

I want to enable sleep mode and minimize current consumption in sleep mode.

I have used following APIs to put device in sleep mode.

sd_power_mode_set(NRF_POWER_MODE_LOWPWR);
sd_app_evt_wait();

But even though, it is consuming 170-230 uA current in sleep mode.

Any idea how we can reduce current in sleep mode. Is this correct method to enable sleep mode with SYSTEM ON ?

I have attached Main.c file of my code. Sleep_mode_enter function is used to enable sleep mode when advertising IDLE event triggered from softdevice.

Please let me know as soon as possible.

/* @file main.c
 * @brief custom BLE project main file.
 *
 * This file contains demo application which uses custom BLE service and characteristic.
 * custom service has functionality of read/write characteristic value and notification
   send at interval of 1 second.
 */

#include <stdbool.h>
#include <stdint.h>
#include <string.h>

#include "nordic_common.h"
#include "nrf.h"
#include "app_error.h"
#include "ble.h"
#include "ble_hci.h"
#include "ble_srv_common.h"
#include "ble_advdata.h"
#include "ble_advertising.h"
#include "ble_conn_params.h"
#include "nrf_sdh.h"
#include "nrf_sdh_soc.h"
#include "nrf_sdh_ble.h"
#include "app_timer.h"
#include "fds.h"
#include "peer_manager.h"
#include "peer_manager_handler.h"
#include "bsp_btn_ble.h"
#include "ble_conn_state.h"
#include "nrf_ble_gatt.h"
#include "nrf_pwr_mgmt.h"
#include "app_uart.h"
#include "nrf_log.h"
#include "nrf_log_ctrl.h"
#include "nrf_log_default_backends.h"
#include "ble_custom.h"
#include "nrf_fprintf.h"
#include "nrf_drv_uart.h"
#include "app_pwm.h"

#include "nrf_delay.h"

#define DEVICE_NAME                     "Nordic_Mihir"                       /**< Name of device. Will be included in the advertising data. */
#define MANUFACTURER_NAME               "NordicSemiconductor"                   /**< Manufacturer. Will be passed to Device Information Service. */
#define APP_ADV_INTERVAL                300                                     /**< The advertising interval (in units of 0.625 ms. This value corresponds to 187.5 ms). */

#define APP_ADV_DURATION                2000                                   /**< The advertising duration (180 seconds) in units of 10 milliseconds. */
#define APP_BLE_OBSERVER_PRIO           3                                       /**< Application's BLE observer priority. You shouldn't need to modify this value. */
#define APP_BLE_CONN_CFG_TAG            1                                       /**< A tag identifying the SoftDevice BLE configuration. */

#define MIN_CONN_INTERVAL               MSEC_TO_UNITS(100, UNIT_1_25_MS) // 100        /**< Minimum acceptable connection interval (0.1 seconds). */
#define MAX_CONN_INTERVAL               MSEC_TO_UNITS(200, UNIT_1_25_MS) // 200       /**< Maximum acceptable connection interval (0.2 second). */
#define SLAVE_LATENCY                   0                                       /**< Slave latency. */
#define CONN_SUP_TIMEOUT                MSEC_TO_UNITS(4000, UNIT_10_MS)         /**< Connection supervisory timeout (4 seconds). */

#define FIRST_CONN_PARAMS_UPDATE_DELAY  APP_TIMER_TICKS(5000)                   /**< Time from initiating event (connect or start of notification) to first time sd_ble_gap_conn_param_update is called (5 seconds). */
#define NEXT_CONN_PARAMS_UPDATE_DELAY   APP_TIMER_TICKS(30000)                  /**< Time between each call to sd_ble_gap_conn_param_update after the first call (30 seconds). */
#define MAX_CONN_PARAMS_UPDATE_COUNT    3                                       /**< Number of attempts before giving up the connection parameter negotiation. */

#define SLEEP_TIME                      60                                      /** seconds for which device is in sleep mode if not connected **/
#define SLEEP_INTERVAL                  APP_TIMER_TICKS(SLEEP_TIME*1000)

#define SEC_PARAM_BOND                  1                                       /**< Perform bonding. */
#define SEC_PARAM_MITM                  0                                       /**< Man In The Middle protection not required. */
#define SEC_PARAM_LESC                  0                                       /**< LE Secure Connections not enabled. */
#define SEC_PARAM_KEYPRESS              0                                       /**< Keypress notifications not enabled. */
#define SEC_PARAM_IO_CAPABILITIES       BLE_GAP_IO_CAPS_NONE                    /**< No I/O capabilities. */
#define SEC_PARAM_OOB                   0                                       /**< Out Of Band data not available. */
#define SEC_PARAM_MIN_KEY_SIZE          7                                       /**< Minimum encryption key size. */
#define SEC_PARAM_MAX_KEY_SIZE          16                                      /**< Maximum encryption key size. */

#define DEAD_BEEF                       0xDEADBEEF                              /**< Value used as error code on stack dump, can be used to identify stack location on stack unwind. */
#define RAM_MEMORY_TEST_ADDRESS         (0x20002220UL)

#define NRF52_ONRAM1_OFFRAM0    POWER_RAM_POWER_S0POWER_On      << POWER_RAM_POWER_S0POWER_Pos      \
												      | POWER_RAM_POWER_S1POWER_On      << POWER_RAM_POWER_S1POWER_Pos      \
												      | POWER_RAM_POWER_S0RETENTION_Off << POWER_RAM_POWER_S0RETENTION_Pos  \
	                            | POWER_RAM_POWER_S1RETENTION_Off << POWER_RAM_POWER_S1RETENTION_Pos;

#define RAM_MEMORY_TEST_WORD    (0xFEEDBEEFUL)  /**< Test word that is written to RAM address RAM_MEMORY_TEST_ADDRESS. */
#define RESET_MEMORY_TEST_BYTE  (0x0DUL)        /**< Known sequence written to a special register to check if this wake up is from System OFF. */
#define MAX_TEST_ITERATIONS     (1)             /**< Maximum number of iterations this example will run. */
#define SUCCESS_OUTPUT_VALUE    (0xAB)          /**< If RAM retention is tested for MAX_TEST_ITERATIONS, this value will be given as output.*/

#ifdef BSP_BUTTON_0
    #define PIN_GPIO_WAKEUP BSP_BUTTON_0        /**< Wake up pin number. */
#endif
#ifndef PIN_GPIO_WAKEUP
    #error "Please indicate wake up pin"
#endif

#ifdef BSP_LED_0
    #define READY_PIN_NUMBER BSP_BOARD_LED_0  /**< Pin number for output. */
#endif
#ifndef READY_PIN_NUMBER
    #error "Please indicate output pin"
#endif

#ifdef BSP_LED_1
    #define SUCCESS_PIN_NUMBER BSP_BOARD_LED_1  /**< Pin number for output. */
#endif
#ifndef SUCCESS_PIN_NUMBER
    #error "Please indicate output pin"
#endif


BLE_CUS_DEF(m_cus_1);
BLE_CUS_DEF(m_cus_2);

uint8_t tx_buffer[100];

NRF_BLE_GATT_DEF(m_gatt);                                                       /**< GATT module instance. */
BLE_ADVERTISING_DEF(m_advertising);                                             /**< Advertising module instance. */

APP_TIMER_DEF(m_notification_timer_id);
APP_PWM_INSTANCE(PWM1,1);                                                       /**< Create the instance "PWM1" using TIMER1. */
static volatile bool ready_flag;                                                /** A flag indicating PWM status */

uint8_t m_custom_value = 0;
static uint16_t m_conn_handle = BLE_CONN_HANDLE_INVALID;                        /**< Handle of the current connection. */
static bool notifications_enable=false;
bool send_notification = false;

// UUID for custom services.
static ble_uuid_t m_adv_uuids[] =                                               /**< Universally unique service identifiers. */
{
    {CUSTOM_SERVICE_1_UUID, BLE_UUID_TYPE_BLE},
    {CUSTOM_SERVICE_2_UUID, BLE_UUID_TYPE_BLE}
};


static void advertising_start(bool erase_bonds);


/**@brief Callback function for asserts in the SoftDevice.
 *
 * @details This function will be called in case of an assert in the SoftDevice.
 *
 * @warning This handler is an example only and does not fit a final product. You need to analyze
 *          how your product is supposed to react in case of Assert.
 * @warning On assert from the SoftDevice, the system can only recover on reset.
 *
 * @param[in] line_num   Line number of the failing ASSERT call.
 * @param[in] file_name  File name of the failing ASSERT call.
 */
void assert_nrf_callback(uint16_t line_num, const uint8_t * p_file_name)
{
    app_error_handler(DEAD_BEEF, line_num, p_file_name);
}


/**@brief Function for handling Peer Manager events.
 *
 * @param[in] p_evt  Peer Manager event.
 */
static void pm_evt_handler(pm_evt_t const * p_evt)
{
    pm_handler_on_pm_evt(p_evt);
    pm_handler_flash_clean(p_evt);

    switch (p_evt->evt_id)
    {
        case PM_EVT_PEERS_DELETE_SUCCEEDED:
            NRF_LOG_INFO("deleted bonds");
            advertising_start(false);
            break;

        default:
            break;
    }
}

/**@brief Function for handling the periodic interval notification
 *
 * @details This function will be called each time the timer expires.
 *
 * @param[in] p_context  Pointer used for passing some arbitrary information (context) from the
 *                       app_start_timer() call to the timeout handler.
 */
static void notification_timeout_handler(void * p_context)
{
     uint32_t * volatile p_ram_test = (uint32_t *)RAM_MEMORY_TEST_ADDRESS;
     NRF_LOG_INFO("Device woke up after %d ", *p_ram_test);
     advertising_start(true);
}

void pwm_ready_callback(uint32_t pwm_id)    // PWM callback function
{
    ready_flag = true;
}

/**@brief Function for the Timer initialization.
 *
 * @details Initializes the timer module. This creates and starts application timers.
 */
static void timers_init(void)
{
    // Initialize timer module.
    ret_code_t err_code = app_timer_init();
    APP_ERROR_CHECK(err_code);

    // Create timers.

     err_code = app_timer_create(&m_notification_timer_id, APP_TIMER_MODE_SINGLE_SHOT, notification_timeout_handler);
     APP_ERROR_CHECK(err_code);
}


/**@brief Function for the GAP initialization.
 *
 * @details This function sets up all the necessary GAP (Generic Access Profile) parameters of the
 *          device including the device name, appearance, and the preferred connection parameters.
 */
static void gap_params_init(void)
{
    ret_code_t              err_code;
    ble_gap_conn_params_t   gap_conn_params;
    ble_gap_conn_sec_mode_t sec_mode;

    BLE_GAP_CONN_SEC_MODE_SET_OPEN(&sec_mode);

    err_code = sd_ble_gap_device_name_set(&sec_mode,
                                          (const uint8_t *)DEVICE_NAME,
                                          strlen(DEVICE_NAME));
    APP_ERROR_CHECK(err_code);
    memset(&gap_conn_params, 0, sizeof(gap_conn_params));

    gap_conn_params.min_conn_interval = MIN_CONN_INTERVAL;
    gap_conn_params.max_conn_interval = MAX_CONN_INTERVAL;
    gap_conn_params.slave_latency     = SLAVE_LATENCY;
    gap_conn_params.conn_sup_timeout  = CONN_SUP_TIMEOUT;

    err_code = sd_ble_gap_ppcp_set(&gap_conn_params);
    APP_ERROR_CHECK(err_code);
}


/**@brief Function for initializing the GATT module.
 */
static void gatt_init(void)
{
    ret_code_t err_code = nrf_ble_gatt_init(&m_gatt, NULL);
    APP_ERROR_CHECK(err_code);
}

/**@brief Function for handling the Custom Service 1 Service events.
 *
 * @details This function will be called for all Custom Service events which are passed to
 *          the application.
 *
 * @param[in]   p_cus_service  Custom Service structure.
 * @param[in]   p_evt          Event received from the Custom Service.
 *
 */
static void on_cus_1_evt(ble_cus_t     * p_cus_service,
                       ble_cus_evt_t * p_evt)
{
    ret_code_t err_code;

    switch(p_evt->evt_type)
    {
        case BLE_CUS_EVT_NOTIFICATION_ENABLED:
              notifications_enable = true;
             break;

        case BLE_CUS_EVT_NOTIFICATION_DISABLED:
              notifications_enable = false;
             break;

        case BLE_CUS_EVT_CONNECTED:
             break;

        case BLE_CUS_EVT_DISCONNECTED:
             break;

        case BLE_CUS_DATA_RECEIVED:
             if(send_notification)
              {
                 send_notification = false;
                 ble_cus_custom_value_update(&m_cus_2, m_custom_value);
              }
             break;

        default:
              break;
    }
}

/**@brief Function for handling the Custom Service2  Service events.
 *
 * @details This function will be called for all Custom Service events which are passed to
 *          the application.
 *
 * @param[in]   p_cus_service  Custom Service structure.
 * @param[in]   p_evt          Event received from the Custom Service.
 *
 */
static void on_cus_2_evt(ble_cus_t     * p_cus_service,
                       ble_cus_evt_t * p_evt)
{
    ret_code_t err_code;

    switch(p_evt->evt_type)
    {
        case BLE_CUS_EVT_NOTIFICATION_ENABLED:
             break;

        case BLE_CUS_EVT_NOTIFICATION_DISABLED:
            break;

        case BLE_CUS_EVT_CONNECTED:
            break;

        case BLE_CUS_EVT_DISCONNECTED:
              break;

        default:
              break;
    }
}

/**@brief Function for initializing services that will be used by the application.
 */
static void services_init(void)
{
    ret_code_t         err_code;
    ble_cus_init_t     cus_1_init,cus_2_init;

    cus_1_init.evt_handler                = on_cus_1_evt;

    BLE_GAP_CONN_SEC_MODE_SET_OPEN(&cus_1_init.custom_value_char_attr_md.cccd_write_perm);
    BLE_GAP_CONN_SEC_MODE_SET_OPEN(&cus_1_init.custom_value_char_attr_md.read_perm);
    BLE_GAP_CONN_SEC_MODE_SET_OPEN(&cus_1_init.custom_value_char_attr_md.write_perm);

    m_cus_1.service_uuid = CUSTOM_SERVICE_1_UUID;
    m_cus_1.char_uuid = CUSTOM_VALUE_CHAR_1_UUID;

    err_code = ble_cus_init(&m_cus_1, &cus_1_init);
    APP_ERROR_CHECK(err_code);

    cus_2_init.evt_handler                = on_cus_2_evt;

    BLE_GAP_CONN_SEC_MODE_SET_OPEN(&cus_2_init.custom_value_char_attr_md.cccd_write_perm);
    BLE_GAP_CONN_SEC_MODE_SET_OPEN(&cus_2_init.custom_value_char_attr_md.read_perm);
    BLE_GAP_CONN_SEC_MODE_SET_OPEN(&cus_2_init.custom_value_char_attr_md.write_perm);

    m_cus_2.service_uuid = CUSTOM_SERVICE_2_UUID;
    m_cus_2.char_uuid = CUSTOM_VALUE_CHAR_2_UUID;

    err_code = ble_cus_init(&m_cus_2, &cus_2_init);
    APP_ERROR_CHECK(err_code);
}


/**@brief Function for handling the Connection Parameters Module.
 *
 * @details This function will be called for all events in the Connection Parameters Module which
 *          are passed to the application.
 *          @note All this function does is to disconnect. This could have been done by simply
 *                setting the disconnect_on_fail config parameter, but instead we use the event
 *                handler mechanism to demonstrate its use.
 *
 * @param[in] p_evt  Event received from the Connection Parameters Module.
 */
static void on_conn_params_evt(ble_conn_params_evt_t * p_evt)
{
    ret_code_t err_code;

    if (p_evt->evt_type == BLE_CONN_PARAMS_EVT_FAILED)
    {
        err_code = sd_ble_gap_disconnect(m_conn_handle, BLE_HCI_CONN_INTERVAL_UNACCEPTABLE);
        APP_ERROR_CHECK(err_code);
    }
}


/**@brief Function for handling a Connection Parameters error.
 *
 * @param[in] nrf_error  Error code containing information about what went wrong.
 */
static void conn_params_error_handler(uint32_t nrf_error)
{
    APP_ERROR_HANDLER(nrf_error);
}


/**@brief Function for initializing the Connection Parameters module.
 */
static void conn_params_init(void)
{
    ret_code_t             err_code;
    ble_conn_params_init_t cp_init;

    memset(&cp_init, 0, sizeof(cp_init));

    cp_init.p_conn_params                  = NULL;
    cp_init.first_conn_params_update_delay = FIRST_CONN_PARAMS_UPDATE_DELAY;
    cp_init.next_conn_params_update_delay  = NEXT_CONN_PARAMS_UPDATE_DELAY;
    cp_init.max_conn_params_update_count   = MAX_CONN_PARAMS_UPDATE_COUNT;
    cp_init.start_on_notify_cccd_handle    = BLE_GATT_HANDLE_INVALID;
    cp_init.disconnect_on_fail             = false;
    cp_init.evt_handler                    = on_conn_params_evt;
    cp_init.error_handler                  = conn_params_error_handler;

    err_code = ble_conn_params_init(&cp_init);
    APP_ERROR_CHECK(err_code);
}

/**@brief Function for putting the chip into sleep mode.
 *
 * @note This function will not return.
 */
static void sleep_mode_enter(void)
{
    NRF_LOG_INFO("Advertising idle and going to sleep mode for %d seconds", SLEEP_TIME);
    app_timer_start(m_notification_timer_id, SLEEP_INTERVAL, NULL);
    bsp_indication_set(BSP_INDICATE_IDLE);
    sd_power_mode_set(NRF_POWER_MODE_LOWPWR);
    sd_app_evt_wait();
    NRF_POWER->SYSTEMOFF = 1;
}


/**@brief Function for handling advertising events.
 *
 * @details This function will be called for advertising events which are passed to the application.
 *
 * @param[in] ble_adv_evt  Advertising event.
 */
static void on_adv_evt(ble_adv_evt_t ble_adv_evt)
{
    ret_code_t err_code;

    switch (ble_adv_evt)
    {
        case BLE_ADV_EVT_FAST:
            NRF_LOG_INFO("Fast advertising.");
            APP_ERROR_CHECK(err_code);
            break;

        case BLE_ADV_EVT_IDLE:
            sleep_mode_enter();
            break;

        default:
            break;
    }
}


/**@brief Function for initializing the BLE stack.
 *
 * @details Initializes the SoftDevice and the BLE event interrupt.
 */
static void ble_stack_init(void)
{
    ret_code_t err_code;

    err_code = nrf_sdh_enable_request();
    APP_ERROR_CHECK(err_code);

    // Configure the BLE stack using the default settings.
    // Fetch the start address of the application RAM.
    uint32_t ram_start = 0;
    err_code = nrf_sdh_ble_default_cfg_set(APP_BLE_CONN_CFG_TAG, &ram_start);
    APP_ERROR_CHECK(err_code);

    // Enable BLE stack.
    err_code = nrf_sdh_ble_enable(&ram_start);
    APP_ERROR_CHECK(err_code);
}


/**@brief Function for the Peer Manager initialization.
 */
static void peer_manager_init(void)
{
    ble_gap_sec_params_t sec_param;
    ret_code_t           err_code;

    err_code = pm_init();
    APP_ERROR_CHECK(err_code);

    memset(&sec_param, 0, sizeof(ble_gap_sec_params_t));

    // Security parameters to be used for all security procedures.
    sec_param.bond           = SEC_PARAM_BOND;
    sec_param.mitm           = SEC_PARAM_MITM;
    sec_param.lesc           = SEC_PARAM_LESC;
    sec_param.keypress       = SEC_PARAM_KEYPRESS;
    sec_param.io_caps        = SEC_PARAM_IO_CAPABILITIES;
    sec_param.oob            = SEC_PARAM_OOB;
    sec_param.min_key_size   = SEC_PARAM_MIN_KEY_SIZE;
    sec_param.max_key_size   = SEC_PARAM_MAX_KEY_SIZE;
    sec_param.kdist_own.enc  = 1;
    sec_param.kdist_own.id   = 1;
    sec_param.kdist_peer.enc = 1;
    sec_param.kdist_peer.id  = 1;

    err_code = pm_sec_params_set(&sec_param);
    APP_ERROR_CHECK(err_code);

    err_code = pm_register(pm_evt_handler);
    APP_ERROR_CHECK(err_code);
}


/**@brief Clear bond information from persistent storage.
 */
static void delete_bonds(void)
{
    ret_code_t err_code;

    NRF_LOG_INFO("Erase bonds!");

    err_code = pm_peers_delete();
    APP_ERROR_CHECK(err_code);
}


/**@brief Function for handling events from the BSP module.
 *
 * @param[in]   event   Event generated when button is pressed.
 */
static void bsp_event_handler(bsp_event_t event)
{
    switch (event)
    {
        case BSP_EVENT_KEY_0:
            NRF_LOG_INFO("\r\n BLE notifications send on service 2 \r\n");
            if(notifications_enable)
            {
             // m_custom_value++;
              ble_cus_custom_value_update(&m_cus_2, m_custom_value);
            }
            break;

        default:
            break;
    }
}


/**@brief Function for initializing the Advertising functionality.
 */
static void advertising_init(void)
{
    ret_code_t             err_code;
    ble_advertising_init_t init;

    memset(&init, 0, sizeof(init));

    init.advdata.name_type               = BLE_ADVDATA_FULL_NAME;
    init.advdata.include_appearance      = true;
    init.advdata.flags                   = BLE_GAP_ADV_FLAGS_LE_ONLY_GENERAL_DISC_MODE;
    init.advdata.uuids_complete.uuid_cnt = sizeof(m_adv_uuids) / sizeof(m_adv_uuids[0]);
    init.advdata.uuids_complete.p_uuids  = m_adv_uuids;

    init.config.ble_adv_fast_enabled  = true;
    init.config.ble_adv_fast_interval = APP_ADV_INTERVAL;
    init.config.ble_adv_fast_timeout  = APP_ADV_DURATION;

    init.evt_handler = on_adv_evt;

    err_code = ble_advertising_init(&m_advertising, &init);
    APP_ERROR_CHECK(err_code);

    ble_advertising_conn_cfg_tag_set(&m_advertising, APP_BLE_CONN_CFG_TAG);
}


/**@brief Function for initializing buttons and leds.
 *
 * @param[out] p_erase_bonds  Will be true if the clear bonding button was pressed to wake the application up.
 */
static void buttons_leds_init(bool * p_erase_bonds)
{
    ret_code_t err_code;
    bsp_event_t startup_event;

    err_code = bsp_init(BSP_INIT_LEDS | BSP_INIT_BUTTONS, bsp_event_handler);
    APP_ERROR_CHECK(err_code);
}


/**@brief Function for initializing the nrf log module.
 */
static void log_init(void)
{
    ret_code_t err_code = NRF_LOG_INIT(NULL);
    APP_ERROR_CHECK(err_code);

    NRF_LOG_DEFAULT_BACKENDS_INIT();
}


/**@brief Function for initializing power management.
 */
static void power_management_init(void)
{
    ret_code_t err_code;
    err_code = nrf_pwr_mgmt_init();
    APP_ERROR_CHECK(err_code);
}


/**@brief Function for handling the idle state (main loop).
 *
 * @details If there is no pending log operation, then sleep until next the next event occurs.
 */
static void idle_state_handle(void)
{
    if (NRF_LOG_PROCESS() == false)
    {
        nrf_pwr_mgmt_run();
    }
}


/**@brief Function for starting advertising.
 */
static void advertising_start(bool erase_bonds)
{
    if (erase_bonds == true)
    {
        delete_bonds();
        // Advertising is started by PM_EVT_PEERS_DELETED_SUCEEDED event
    }
    else
    {
        ret_code_t err_code = ble_advertising_start(&m_advertising, BLE_ADV_MODE_FAST);

        APP_ERROR_CHECK(err_code);

        //app_timer_start(m_notification_timer_id, ADVERTISING_INTERVAL, NULL);
    }
}

void configure_ram_retention(void)
{
       NRF_POWER->RAMON |= (POWER_RAMON_OFFRAM0_RAM0On << POWER_RAMON_OFFRAM0_Pos) |
                        (POWER_RAMON_OFFRAM1_RAM1On << POWER_RAMON_OFFRAM1_Pos);
}


void pwm_init()
{
    ret_code_t err_code;

    /* 2-channel PWM, 200Hz, output on DK LED pins. */
    app_pwm_config_t pwm1_cfg = APP_PWM_DEFAULT_CONFIG_1CH(5000L, BSP_LED_0);

    /* Switch the polarity of the second channel. */
    //pwm1_cfg.pin_polarity[1] = APP_PWM_POLARITY_ACTIVE_HIGH;

    /* Initialize and enable PWM. */
    err_code = app_pwm_init(&PWM1,&pwm1_cfg,pwm_ready_callback);
    APP_ERROR_CHECK(err_code);
    app_pwm_enable(&PWM1);

        uint32_t value;
    while (true)
    {
        for (uint8_t i = 0; i < 40; ++i)
        {
            value = (i < 20) ? (i * 5) : (100 - (i - 20) * 5);

            ready_flag = false;
            /* Set the duty cycle - keep trying until PWM is ready... */
            while (app_pwm_channel_duty_set(&PWM1, 0, value) == NRF_ERROR_BUSY);

            /* ... or wait for callback. */
            while (!ready_flag);
            APP_ERROR_CHECK(app_pwm_channel_duty_set(&PWM1, 1, value));
            nrf_delay_ms(25);
        }
    }
}

/**@brief Function for application main entry.
 */
int main(void)
{
    uint32_t * volatile p_ram_test = (uint32_t *)RAM_MEMORY_TEST_ADDRESS;
    log_init();
    NRF_LOG_INFO("\r\n BLE custom service demo started \r\n");
    timers_init();
    power_management_init();
//    NRF_LOG_INFO("Sleep time before init = %d seconds", *p_ram_test);
//    configure_ram_retention();
//    *p_ram_test = SLEEP_TIME;
//    NRF_LOG_INFO("Sleep time after init = %d seconds", *p_ram_test);
    ble_stack_init();
    gap_params_init();
    gatt_init();
    advertising_init();
    services_init();
    conn_params_init();
    peer_manager_init();
    advertising_start(true);

    NRF_LOG_INFO("\r\n Initiliazation done \r\n");
    // Enter main loop.
    for (;;)
    {
        idle_state_handle();
    }

}

/**
 * @}
 */

Parents
  • Hi Mihir

    sd_app_evt_wait() is technically the right function to run, but when using the power management module you should use idle_state_handle() instead.

    NRF_POWER_MODE_LOWPWR is the default power mode, so unless you have set it to something else you don't need to set it in the code.

    When having issues with excessive current draw in sleep it is usually caused by incorrect GPIO configuration (leading to floating pins, or pins being pulled high or low), or some peripheral running in sleep that shouldn't be, such as a TIMER module.

    I can't see any GPIO configuration in your code?

    Are you using a standard DK, or a custom board?

    Best regards
    Torbjørn

  • Hi Thank you for your quick response.

    Below are code changes which I need to make.

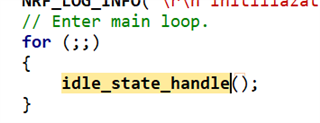

    In my while(1) loop function idle_state_handle()  is getting called so, when there is no event CPU is in sleep mode only.

    Low power mode is enabled by default so no need to set it explicitly.

    I have used standard development kit for this demo. So, all BSP initialization is as per standard DK only.

    I have not called bsp_init function. So, my GPIOs are not initialized as I don't need any GPIO configurations.

    I want to run timer in sleep mode and wake up after specific time interval.

    Can you please suggest how can I proceed ahead to reduce current to less than 50 uA.??

Reply
  • Hi Thank you for your quick response.

    Below are code changes which I need to make.

    In my while(1) loop function idle_state_handle()  is getting called so, when there is no event CPU is in sleep mode only.

    Low power mode is enabled by default so no need to set it explicitly.

    I have used standard development kit for this demo. So, all BSP initialization is as per standard DK only.

    I have not called bsp_init function. So, my GPIOs are not initialized as I don't need any GPIO configurations.

    I want to run timer in sleep mode and wake up after specific time interval.

    Can you please suggest how can I proceed ahead to reduce current to less than 50 uA.??

Children
  • Hi Mihir

    I think you should initialize the buttons and LED's even if you're not using them, otherwise you could have issues with floating pins as I mentioned earlier.

    For sleep timing you should use one of the RTC timers, as they will run at a much lower current than the TIMER modules.

    The app_timer module in the SDK is also based on the RTC, and can be used to wake up the CPU at regular intervals while consuming only a couple of microamps in between.

    Best regards
    Torbjørn

Related
