Repeating Chip Select Line Pulse

[jemiaha]

I'm using the SPI Manager to send large transfers of data to a graphics controller. What I see is that, once a single byte is transferred, the CS line will continue to pulse on it's own every 1ms. It doesn't start until after a first transaction is complete.

Here's a shot of that first single byte:

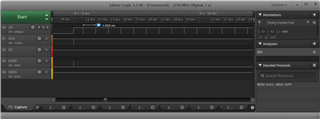

And right after that the regular 1ms CS pulses start:

They keep going until the system is reset.

I've reduced by configuration down to a simple state for debugging the issue:

nrf_drv_spi_config_t const m_disp_ILI9341_spi_config =
{
	.sck_pin        = SPI_SCK_PIN,
	.mosi_pin       = SPI_MOSI_PIN,
	.miso_pin       = SPI_MISO_PIN,
	.ss_pin         = DISP_CS,  // NRF_GPIO_PIN_MAP(0,31)
	.irq_priority   = APP_IRQ_PRIORITY_LOWEST,
	.orc            = 0xFF,
	.frequency      = NRF_DRV_SPI_FREQ_8M,
	.mode           = NRF_DRV_SPI_MODE_3,
	.bit_order      = NRF_DRV_SPI_BIT_ORDER_MSB_FIRST
};

uint8_t ER_TFT020_1_CMD_TRANSFER_DATA[] = {0x00};

nrf_spi_mngr_transfer_t ER_TFT020_1_CMD_TRANSFER = NRF_SPI_MNGR_TRANSFER(ER_TFT020_1_CMD_TRANSFER_DATA, sizeof(ER_TFT020_1_CMD_TRANSFER_DATA), NULL, 0);

 nrf_spi_mngr_transaction_t ER_TFT020_1_CMD_TRANSACTION =
        {
            .begin_callback      = NULL,
            .end_callback        = NULL,
            .p_user_data         = NULL,
            .p_transfers         = &ER_TFT020_1_CMD_TRANSFER,
            .number_of_transfers = 1,
            .p_required_spi_cfg  = &m_disp_ILI9341_spi_config
        };

// Add a byte to the transfer buffer
ER_TFT020_1_CMD_TRANSFER_DATA[0] = 0x01;

// Schedule the transaction
ret_val = spi0_master_sched_transaction(&ER_TFT020_1_CMD_TRANSACTION);

I've checked to make sure the pin isn't being used by other parts of the code. I've verified it doesn't start until that first byte is sent. There's no activity on the CS line before that. There are two other SPI chips in the system but they have seperate CS lines and their own nrf_drv_spi_config_t configuration structures. Is it possible the SPI Manager is periodically pulsing the CS line? If so, why and how to I turn it off?

Thanks in advance.

.

[Edvin]

Hello,

I don't see the correlation between the first and second image from the logic analyzer? When does it start doing the pulses? Are you sure the pin isn't being used by something else? (I don't have a logic analzer in the home office these corona times, so I can't check).

However, can you try to set the SS/CS pin to NRF_DRV_SPI_PIN_NOT_USED, and control it manually from the application? You must set it as an output pin, set it to low before you send, and set it back up. Does it still do the dips every 1ms then?

[jemiaha]

Thanks for the reply Edvin. The second image is from a wider time scale. The issue is resolved though. Even though I'd checked to make sure there wasn't another part of the SW using that pin I checked again and found it. In my defense, it wasn't a direct pin assignment repetition. This project uses the SAADC as well and the setup code for that was still referencing the pins from the previous board revision. It was using an NRF_SAADC_INPUT_AINX macro and thus wasn't in the pin map file. So every time the SAADC used the pin it would pulse the CS line. Totally my own fault. Sorry for the false alarm.

[Edvin]

No worries. I am glad to hear that you found the source of the issue!

Best regards,

Edvin
