Streaming audio data from ADC with I2S

[Kampino]

Hello,

I´m working on my audio project and I try to stream some audio data (currently a 1 kHz square wave signal with 3.3 V peak) over I2S. The audio signal is sampled by an ADC in the free-running mode.

#include "app_error.h"
#include "nrf_drv_ppi.h"
#include "nrf_drv_i2s.h"
#include "nrf_drv_saadc.h"
#include "nrf_drv_timer.h"
#include "nrf_gpio.h"

#include "nrf_log.h"
#include "nrf_log_ctrl.h"
#include "nrf_log_default_backends.h"

#define LED_0			17
#define BUTTON_0		13
#define BUTTON_1		14
#define TRIGGER			31
#define SAMPLES			128

static bool			IsStarted		= false;
static volatile uint32_t*	I2S_BlockToFill		= NULL;
static volatile uint32_t*	ADC_BlockToFill		= NULL;

static uint32_t			I2S_Buffer[2][SAMPLES];
static nrf_saadc_value_t	ADC_Buffer[2][SAMPLES];
static nrf_ppi_channel_t	PPI_Channel;

static const nrf_drv_timer_t	Timer = NRF_DRV_TIMER_INSTANCE(0);

void on_Timer_Handler(nrf_timer_event_t EventType, void* p_Context)
{
}

void on_SAADC_Handler(nrf_drv_saadc_evt_t const* p_Event)
{
    if(p_Event->type == NRF_DRV_SAADC_EVT_DONE)
    {
        APP_ERROR_CHECK(nrf_drv_saadc_buffer_convert(p_Event->data.done.p_buffer, SAMPLES));

	ADC_BlockToFill = (uint32_t*)p_Event->data.done.p_buffer;
    }
}

static void DataHandler(nrf_drv_i2s_buffers_t const* p_Released, uint32_t Status)
{
    // 'nrf_drv_i2s_next_buffers_set' is called directly from the handler
    // each time next buffers are requested, so data corruption is not
    // expected.
    ASSERT(p_Released);

    // When the handler is called after the transfer has been stopped
    // (no next buffers are needed, only the used buffers are to be
    // released), there is nothing to do.
    if(!(Status & NRFX_I2S_STATUS_NEXT_BUFFERS_NEEDED))
    {
        return;
    }

    // First call of this handler occurs right after the transfer is started.
    // No data has been transferred yet at this point, so there is nothing to
    // check. Only the buffers for the next part of the transfer should be
    // provided.
    if(!p_Released->p_tx_buffer)
    {
        nrf_drv_i2s_buffers_t const NextBuffer = {
            .p_tx_buffer = I2S_Buffer[1],
	    .p_rx_buffer = NULL,
        };

        APP_ERROR_CHECK(nrf_drv_i2s_next_buffers_set(&NextBuffer));

	nrf_gpio_pin_clear(TRIGGER);

        I2S_BlockToFill = I2S_Buffer[1];
    }
    else
    {
        // The driver has just finished accessing the buffers pointed by
        // 'p_Released'. They can be used for the next part of the transfer
        // that will be scheduled now.
        APP_ERROR_CHECK(nrf_drv_i2s_next_buffers_set(p_Released));

        // The pointer needs to be typecasted here, so that it is possible to
        // modify the content it is pointing to (it is marked in the structure
        // as pointing to constant data because the driver is not supposed to
        // modify the provided data).
        I2S_BlockToFill = (uint32_t*)p_Released->p_tx_buffer;
    }
}

void SAADC_Init(void)
{
    APP_ERROR_CHECK(nrf_drv_saadc_init(NULL, on_SAADC_Handler));
    APP_ERROR_CHECK(nrf_drv_ppi_init());

    nrf_drv_timer_config_t timer_cfg = NRF_DRV_TIMER_DEFAULT_CONFIG;
    timer_cfg.bit_width = NRF_TIMER_BIT_WIDTH_32;

    APP_ERROR_CHECK(nrf_drv_timer_init(&Timer, &timer_cfg, on_Timer_Handler));
    nrf_drv_timer_extended_compare(&Timer, NRF_TIMER_CC_CHANNEL0, nrf_drv_timer_us_to_ticks(&Timer, 23), NRF_TIMER_SHORT_COMPARE0_CLEAR_MASK, false);
    nrf_drv_timer_enable(&Timer);

    APP_ERROR_CHECK(nrf_drv_ppi_channel_alloc(&PPI_Channel));
    APP_ERROR_CHECK(nrf_drv_ppi_channel_assign(PPI_Channel, nrf_drv_timer_compare_event_address_get(&Timer, NRF_TIMER_CC_CHANNEL0), nrf_drv_saadc_sample_task_get()));

    nrf_saadc_channel_config_t Channel0 = NRF_DRV_SAADC_DEFAULT_CHANNEL_CONFIG_SE(NRF_SAADC_INPUT_AIN1);
    Channel0.acq_time = NRF_SAADC_ACQTIME_10US;

    APP_ERROR_CHECK(nrf_drv_saadc_channel_init(0, &Channel0));
    APP_ERROR_CHECK(nrf_drv_saadc_buffer_convert(ADC_Buffer[0], SAMPLES));
    APP_ERROR_CHECK(nrf_drv_saadc_buffer_convert(ADC_Buffer[1], SAMPLES));
    APP_ERROR_CHECK(nrf_drv_ppi_channel_enable(PPI_Channel));
}

int main(void)
{
    APP_ERROR_CHECK(NRF_LOG_INIT(NULL));
    NRF_LOG_DEFAULT_BACKENDS_INIT();

    SAADC_Init();

    nrf_gpio_cfg_input(BUTTON_0, NRF_GPIO_PIN_PULLUP);
    nrf_gpio_cfg_input(BUTTON_1, NRF_GPIO_PIN_PULLUP);

    nrf_gpio_cfg_output(TRIGGER);
    nrf_gpio_cfg_output(LED_0);
    nrf_gpio_pin_clear(TRIGGER);
    nrf_gpio_pin_set(LED_0);

    nrf_drv_i2s_config_t I2S_Config = NRF_DRV_I2S_DEFAULT_CONFIG;
    I2S_Config.sdin_pin	    = NRFX_I2S_PIN_NOT_USED;
    I2S_Config.sdout_pin    = 27;
    I2S_Config.lrck_pin	    = 26;
    I2S_Config.sck_pin	    = 25;
    I2S_Config.mck_pin	    = 2;
    I2S_Config.mck_setup    = NRF_I2S_MCK_32MDIV8;
    I2S_Config.ratio	    = NRF_I2S_RATIO_96X;
    I2S_Config.channels	    = NRF_I2S_CHANNELS_STEREO;
    APP_ERROR_CHECK(nrf_drv_i2s_init(&I2S_Config, DataHandler));

    nrf_drv_i2s_buffers_t const InitialBuffer = {
	.p_tx_buffer = I2S_Buffer[0],
        .p_rx_buffer = NULL,
    };

    while(1)
    {
	if(nrf_gpio_pin_read(BUTTON_0) == false)
	{
	    if(IsStarted == false)
	    {
		APP_ERROR_CHECK(nrf_drv_i2s_start(&InitialBuffer, SAMPLES, 0));
		NRF_LOG_INFO("I2S sender started...");
		IsStarted = true;
		nrf_gpio_pin_set(TRIGGER);
		nrf_gpio_pin_clear(LED_0);
	    }
	}
	else if(nrf_gpio_pin_read(BUTTON_1) == false)
	{
	    if(IsStarted)
	    {
		nrf_drv_i2s_stop();
		NRF_LOG_INFO("I2S sender stopped...");
		IsStarted = false;
		nrf_gpio_pin_clear(TRIGGER);
		nrf_gpio_pin_set(LED_0);
	    }
	}

	if(I2S_BlockToFill && ADC_BlockToFill)
        {
	    for(uint32_t i = 0x00; i < SAMPLES; i++)
	    {
		//int16_t Sample = (int16_t)(32768 * sin(2.0 * 3.14 * (double)i / ((double)SAMPLES)));
		I2S_BlockToFill[i] = (uint32_t)(0x0000 | (ADC_BlockToFill[i] & 0xFFFF));
	    }

            I2S_BlockToFill = NULL;
	    ADC_BlockToFill = NULL;
        }

	if(NRF_LOG_PROCESS())
	{
	    NRF_LOG_FLUSH();
	}
    }
}

The code from above will give a pretty poor signal when I use the ADC.

I have tried to figure out the reason for this and replaced the line

I2S_BlockToFill[i] = (uint32_t)(0x0000 | (ADC_BlockToFill[i] & 0xFFFF));

with

I2S_BlockToFill[i] = (uint32_t)(0x0000 | (i & 0xFFFF));

to produce data from a ramp signal and the signal looks much better.

So it looks like the problem is based on the ADC. I have tried to use two buffers to use the same swapping buffer system as in the I2S example.

How can I improve this result?

[Kampino]

Karl Ylvisaker said:

Looking back at your original post I see that you had double buffering there, but not in your latest post - what is the reason for this?

Because I have removed it to find the reason for the error. But I will add it again. I also found out that the I2S transmitter transmits 2x 0x00 during the first transmission. This will cause a lot of wrong data points when I only send one package with 128 bytes, disable the I2S and start it again (because I have to wait for the ADC). Anyway, the code isn´t ideal so I have to modify it :)

[Karl Ylvisaker]

Kampino said:

Because I have removed it to find the reason for the error. But I will add it again.

Aha, thank you for clarifying! :) Yes, I would suggest that you add it again so that you do not get these dropped samples at the end of every buffer.

Kampino said:

I also found out that the I2S transmitter transmits 2x 0x00 during the first transmission. This will cause a lot of wrong data points when I only send one package with 128 bytes, disable the I2S and start it again (because I have to wait for the ADC). Anyway, the code isn´t ideal so I have to modify it :)

There are some known I2S issues (and workarounds) for the nRF52832, but I have never heard about it outputting two bytes at every startup. Do you see the same behavior when you test with the unmodified I2S example from the SDK?

Best regards,
Karl

[Kampino]

Hi Karl,

please check the output from the I2S example from Nordic. I only have changed the pins to use it with my current setup:

    config.sdout_pin = 27;
    config.lrck_pin  = 26;
    config.sck_pin   = 25;
    config.mck_pin   = 2;

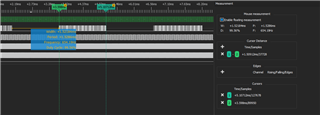

The buffer is filled with the following values:

The first words (two cycles) are zero, but my LA doesn´t decode the first word when LRCLK is low (don´t know why).

[Karl Ylvisaker]

Thank you for testing this, that seems peculiar to me.
I will attempt to replicate this on my end tomorrow.

Best regards,
Karl

[Karl Ylvisaker]

Hello again, Daniel

Thank you for your continued patience with this.

I have taken a look at the behavior you described, and concluded that it is likely caused by the 'm_zero_samples_to_ignore' parameter of the unmodified I2S example, which comes into play at the beginning of every transfer.

The comment in the check_samples function details it further:

        // Normally a couple of initial samples sent by the I2S peripheral
        // will have zero values, because it starts to output the clock
        // before the actual data is fetched by EasyDMA. As we are dealing
        // with streaming the initial zero samples can be simply ignored.

You could also read more about this in the comments at the beginning of the prepare_tx_data function.

I will be going out of office starting today, and I will not be back until after new years. If you require further technical support in my absence, or have any other issues or questions, please create a new ticket for this. Please also note that the forum will be operating with reduced staffing during the upcoming holiday season here in Norway - apologies for any inconveniences this might cause.

I hope you have a great holiday season, Daniel! :)

Best regards,
Karl

[Kampino]

Hi Karl,

thank you for the answer

Everything is clear now and my project works as expected. I will close the ticket and wish you a great holiday and some relaxing Christmas days.

Best wishes
