When I was developing a keyboard using the nRF52840 with the NCS SDK, I found that the keyboard couldn't type on macOS when connected via USB or BLE. However, it worked perfectly on Windows and Android. I tried modifying the CONFIG_DESKTOP_DEVICE_VID and CONFIG_DESKTOP_DEVICE_PID to Apple's IDs, but it still didn't work. Could you help me solve this problem?
Hi,
I am checking this internally and will get back to you.
Regards,
Priyanka
3q for your reply，is there some message now?
because if the PID and VID is not the apples,some key like comsumer key will not work well on mac os, nRF5 SDK v17.1.0: USB HID Composite Example in this example after modify the pid and vid to apples ,mac os can work well.
We recommend to try to parse the HID report descriptor with external tools e.g. https://github.com/FFY00/python-hid-parser and see if the parser output matches what was intended
It would be great if you could provide the report descriptor and what reports you send when buttons are pressed and released, ideally a whole sequence of reports that is sent when user types "test" (or any other word) on the keyboard.
Also, I don't think there is a point to point alternative to the sample that you mentioned, but maybe you can take a look at this sample in Zephyr:
https://docs.nordicsemi.com/bundle/ncs-2.6.2/page/zephyr/samples/subsys/usb/cdc_acm_composite/README.html
-Priyanka

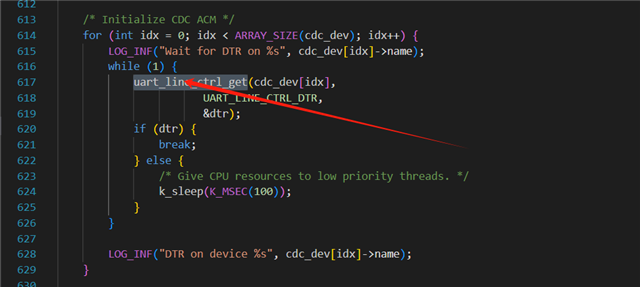

i have try to test it ,but it will be init cdc fail.and be stuck in a dead loop all the time. cannot work funcation
could you test it ,i test it USB HID and CDC ACM by pca10056 really fail
Hi,
I have requested internally to try and reproduce this as I have a Windows here.
You have not made any modifications to the sample, right?
Also as mentioned earlier, we don't suggest changing the VID/PID. We would recommend to try to parse the HID report descriptor with external tools e.g. https://github.com/FFY00/python-hid-parser and see if the parser output matches what was intended.
We would be able to help better if you could provide the report descriptor and what reports you send when buttons are pressed and released, ideally a whole sequence of reports that is sent when user types "test" (or any other word) on the keyboard.
pipixia_1_1 said:ome key like comsumer key
Cold you tell me what this is?
Hi,
I have requested internally to try and reproduce this as I have a Windows here.
You have not made any modifications to the sample, right?
Also as mentioned earlier, we don't suggest changing the VID/PID. We would recommend to try to parse the HID report descriptor with external tools e.g. https://github.com/FFY00/python-hid-parser and see if the parser output matches what was intended.
We would be able to help better if you could provide the report descriptor and what reports you send when buttons are pressed and released, ideally a whole sequence of reports that is sent when user types "test" (or any other word) on the keyboard.
pipixia_1_1 said:ome key like comsumer key
Cold you tell me what this is?
Usage Page (Generic Desktop) 05 01
Usage (Keyboard) 09 06
Collection (Application) A1 01
Report ID (2) 85 02
Usage Page (Keyboard/Keypad) 05 07
Usage Minimum (Keyboard Left Control) 19 E0
Usage Maximum (Keyboard Right GUI) 29 E7
Logical Minimum (0) 15 00
Logical Maximum (1) 25 01
Report Size (1) 75 01
Report Count (8) 95 08
Input (Data,Var,Abs,NWrp,Lin,Pref,NNul,Bit) 81 02
Report Size (8) 75 08
Report Count (1) 95 01
Input (Cnst,Ary,Abs) 81 01
Usage Page (Keyboard/Keypad) 05 07
Usage Minimum (Undefined) 19 00
Usage Maximum (Keypad =) 29 67
Logical Minimum (0) 15 00
Logical Maximum (1) 25 01
Report Size (1) 75 01
Report Count (104) 95 68
Input (Data,Ary,Abs) 81 00
Report ID (5) 85 05
Usage Page (LEDs) 05 08
Usage Minimum (Num Lock) 19 01
Usage Maximum (Kana) 29 05
Logical Minimum (0) 15 00
Logical Maximum (1) 25 01
Report Count (5) 95 05
Report Size (1) 75 01
Output (Data,Var,Abs,NWrp,Lin,Pref,NNul,NVol,Bit) 91 02
Report Count (1) 95 01
Report Size (3) 75 03
Output (Cnst,Ary,Abs,NWrp,Lin,Pref,NNul,NVol,Bit) 91 01
Report ID (6) 85 06
Usage Page (Vendor-Defined 1) 06 00 FF
Usage (Vendor-Defined 65281) 0A 01 FF
Logical Minimum (0) 15 00
Logical Maximum (255) 26 FF 00
Report Size (8) 75 08
Report Count (62) 95 3E
Feature (Data,Var,Abs,NWrp,Lin,Pref,NNul,NVol,Bit) B1 02
End Collection C0
Usage Page (Generic Desktop) 05 01
Usage (System Control) 09 80
Collection (Application) A1 01
Report ID (3) 85 03
Logical Minimum (0) 15 00
Logical Maximum (1023) 26 FF 03
Usage Minimum (Undefined) 19 00
Usage Maximum 2A FF 03
Report Size (16) 75 10
Report Count (1) 95 01
Input (Data,Ary,Abs) 81 00
End Collection C0
Usage Page (Consumer Devices) 05 0C
Usage (Consumer Control) 09 01
Collection (Application) A1 01
Report ID (4) 85 04
Logical Minimum (0) 15 00
Logical Maximum (1023) 26 FF 03
Usage Minimum (Undefined) 19 00
Usage Maximum 2A FF 03
Report Size (16) 75 10
Report Count (1) 95 01
Input (Data,Ary,Abs) 81 00
End Collection C0
i modify the report desc.this is my report desc,and my keyboard can work in windowns well.
| Offset | Field | Size | Value | Description |
|---|---|---|---|---|
| 0 | bLength | 1 | 09h | |
| 1 | bDescriptorType | 1 | 02h | Configuration |
| 2 | wTotalLength | 2 | 0096h | |
| 4 | bNumInterfaces | 1 | 05h | |
| 5 | bConfigurationValue | 1 | 01h | |
| 6 | iConfiguration | 1 | 04h | "Default configuration" |
| 7 | bmAttributes | 1 | E0h | Self Powered, Remote Wakeup |
| 4..0: Reserved | ...00000 | |||
| 5: Remote Wakeup | ..1..... | Yes | ||
| 6: Self Powered | .1...... | Yes | ||
| 7: Reserved (set to one) (bus-powered for 1.0) |
1....... | |||
| 8 | bMaxPower | 1 | FAh | 500 mA |
| Offset | Field | Size | Value | Description |
|---|---|---|---|---|
| 0 | bLength | 1 | 09h | |
| 1 | bDescriptorType | 1 | 04h | Interface |
| 2 | bInterfaceNumber | 1 | 00h | |
| 3 | bAlternateSetting | 1 | 00h | |
| 4 | bNumEndpoints | 1 | 01h | |
| 5 | bInterfaceClass | 1 | 03h | HID |
| 6 | bInterfaceSubClass | 1 | 01h | Boot Interface |
| 7 | bInterfaceProtocol | 1 | 01h | Keyboard |
| 8 | iInterface | 1 | 00h |
| Offset | Field | Size | Value | Description |
|---|---|---|---|---|
| 0 | bLength | 1 | 09h | |
| 1 | bDescriptorType | 1 | 21h | HID |
| 2 | bcdHID | 2 | 0111h | 1.11 |
| 4 | bCountryCode | 1 | 00h | |
| 5 | bNumDescriptors | 1 | 01h | |
| 6 | bDescriptorType | 1 | 22h | Report |
| 7 | wDescriptorLength | 2 | 003Fh | 63 bytes |
| Offset | Field | Size | Value | Description |
|---|---|---|---|---|
| 0 | bLength | 1 | 07h | |
| 1 | bDescriptorType | 1 | 05h | Endpoint |
| 2 | bEndpointAddress | 1 | 81h | 1 In |
| 3 | bmAttributes | 1 | 03h | Interrupt |
| 1..0: Transfer Type | ......11 | Interrupt | ||
| 7..2: Reserved | 000000.. | |||
| 4 | wMaxPacketSize | 2 | 0040h | 64 bytes |
| 6 | bInterval | 1 | 01h | 1 ms |
| Offset | Field | Size | Value | Description |
|---|---|---|---|---|
| 0 | bLength | 1 | 09h | |
| 1 | bDescriptorType | 1 | 04h | Interface |
| 2 | bInterfaceNumber | 1 | 01h | |
| 3 | bAlternateSetting | 1 | 00h | |
| 4 | bNumEndpoints | 1 | 01h | |
| 5 | bInterfaceClass | 1 | 03h | HID |
| 6 | bInterfaceSubClass | 1 | 01h | Boot Interface |
| 7 | bInterfaceProtocol | 1 | 01h | Keyboard |
| 8 | iInterface | 1 | 00h |
| Offset | Field | Size | Value | Description |
|---|---|---|---|---|
| 0 | bLength | 1 | 09h | |
| 1 | bDescriptorType | 1 | 21h | HID |
| 2 | bcdHID | 2 | 0111h | 1.11 |
| 4 | bCountryCode | 1 | 00h | |
| 5 | bNumDescriptors | 1 | 01h | |
| 6 | bDescriptorType | 1 | 22h | Report |
| 7 | wDescriptorLength | 2 | 0030h | 48 bytes |
| Offset | Field | Size | Value | Description |
|---|---|---|---|---|
| 0 | bLength | 1 | 07h | |
| 1 | bDescriptorType | 1 | 05h | Endpoint |
| 2 | bEndpointAddress | 1 | 82h | 2 In |
| 3 | bmAttributes | 1 | 03h | Interrupt |
| 1..0: Transfer Type | ......11 | Interrupt | ||
| 7..2: Reserved | 000000.. | |||
| 4 | wMaxPacketSize | 2 | 0040h | 64 bytes |
| 6 | bInterval | 1 | 01h | 1 ms |
| Offset | Field | Size | Value | Description |
|---|---|---|---|---|
| 0 | bLength | 1 | 09h | |
| 1 | bDescriptorType | 1 | 04h | Interface |
| 2 | bInterfaceNumber | 1 | 02h | |
| 3 | bAlternateSetting | 1 | 00h | |
| 4 | bNumEndpoints | 1 | 01h | |
| 5 | bInterfaceClass | 1 | 03h | HID |
| 6 | bInterfaceSubClass | 1 | 01h | Boot Interface |
| 7 | bInterfaceProtocol | 1 | 00h | |
| 8 | iInterface | 1 | 00h |
| Offset | Field | Size | Value | Description |
|---|---|---|---|---|
| 0 | bLength | 1 | 09h | |
| 1 | bDescriptorType | 1 | 21h | HID |
| 2 | bcdHID | 2 | 0111h | 1.11 |
| 4 | bCountryCode | 1 | 00h | |
| 5 | bNumDescriptors | 1 | 01h | |
| 6 | bDescriptorType | 1 | 22h | Report |
| 7 | wDescriptorLength | 2 | 0022h | 34 bytes |
| Offset | Field | Size | Value | Description |
|---|---|---|---|---|
| 0 | bLength | 1 | 07h | |
| 1 | bDescriptorType | 1 | 05h | Endpoint |
| 2 | bEndpointAddress | 1 | 83h | 3 In |
| 3 | bmAttributes | 1 | 03h | Interrupt |
| 1..0: Transfer Type | ......11 | Interrupt | ||
| 7..2: Reserved | 000000.. | |||
| 4 | wMaxPacketSize | 2 | 0040h | 64 bytes |
| 6 | bInterval | 1 | 01h | 1 ms |
| Offset | Field | Size | Value | Description |
|---|---|---|---|---|
| 0 | bLength | 1 | 08h | |
| 1 | bDescriptorType | 1 | 0Bh | Interface Association |
| 2 | bFirstInterface | 1 | 03h | |
| 3 | bInterfaceCount | 1 | 02h | |
| 4 | bFunctionClass | 1 | 02h | CDC Control |
| 5 | bFunctionSubClass | 1 | 02h | Abstract Control Model |
| 6 | bFunctionProtocol | 1 | 01h | AT Commands: V.250 etc |
| 7 | iFunction | 1 | 00h |
| Offset | Field | Size | Value | Description |
|---|---|---|---|---|
| 0 | bLength | 1 | 09h | |
| 1 | bDescriptorType | 1 | 04h | Interface |
| 2 | bInterfaceNumber | 1 | 03h | |
| 3 | bAlternateSetting | 1 | 00h | |
| 4 | bNumEndpoints | 1 | 01h | |
| 5 | bInterfaceClass | 1 | 02h | CDC Control |
| 6 | bInterfaceSubClass | 1 | 02h | Abstract Control Model |
| 7 | bInterfaceProtocol | 1 | 01h | AT Commands: V.250 etc |
| 8 | iInterface | 1 | 00h |
| Offset | Field | Size | Value | Description |
|---|---|---|---|---|
| 0 | bFunctionLength | 1 | 05h | |
| 1 | bDescriptorType | 1 | 24h | CS Interface |
| 2 | bDescriptorSubtype | 1 | 00h | Header |
| 3 | bcdCDC | 2 | 0110h | 1.10 |
| Offset | Field | Size | Value | Description |
|---|---|---|---|---|
| 0 | bFunctionLength | 1 | 05h | |
| 1 | bDescriptorType | 1 | 24h | CS Interface |
| 2 | bDescriptorSubtype | 1 | 01h | Call Management |
| 3 | bmCapabilities | 1 | 03h | |
| 7..2: Reserved | 000000.. | |||
| 1: Data Ifc Usage | ......1. | Call management over Data Ifc | ||
| 0: Call Management | .......1 | Handles call management itself | ||
| 4 | bDataInterface | 1 | 04h |
| Offset | Field | Size | Value | Description |
|---|---|---|---|---|
| 0 | bFunctionLength | 1 | 04h | |
| 1 | bDescriptorType | 1 | 24h | CS Interface |
| 2 | bDescriptorSubtype | 1 | 02h | Abstract Control Management |
| 3 | bmCapabilities | 1 | 02h | |
| 7..4: Reserved | 0000.... | |||
| 3: Connection | ....0... | |||
| 2: Send Break | .....0.. | |||
| 1: Line Coding | ......1. | Line Coding requests and Serial State notification supported | ||
| 0: Comm Features | .......0 |
| Offset | Field | Size | Value | Description |
|---|---|---|---|---|
| 0 | bFunctionLength | 1 | 05h | |
| 1 | bDescriptorType | 1 | 24h | CS Interface |
| 2 | bDescriptorSubtype | 1 | 06h | Union |
| 3 | bControlInterface | 1 | 03h | |
| 4 | bSubordinateInterface0 | 1 | 04h | CDC Data |
| Offset | Field | Size | Value | Description |
|---|---|---|---|---|
| 0 | bLength | 1 | 07h | |
| 1 | bDescriptorType | 1 | 05h | Endpoint |
| 2 | bEndpointAddress | 1 | 84h | 4 In |
| 3 | bmAttributes | 1 | 03h | Interrupt |
| 1..0: Transfer Type | ......11 | Interrupt | ||
| 7..2: Reserved | 000000.. | |||
| 4 | wMaxPacketSize | 2 | 0040h | 64 bytes |
| 6 | bInterval | 1 | 10h | 16 ms |
| Offset | Field | Size | Value | Description |
|---|---|---|---|---|
| 0 | bLength | 1 | 09h | |
| 1 | bDescriptorType | 1 | 04h | Interface |
| 2 | bInterfaceNumber | 1 | 04h | |
| 3 | bAlternateSetting | 1 | 00h | |
| 4 | bNumEndpoints | 1 | 02h | |
| 5 | bInterfaceClass | 1 | 0Ah | CDC Data |
| 6 | bInterfaceSubClass | 1 | 00h | |
| 7 | bInterfaceProtocol | 1 | 00h | |
| 8 | iInterface | 1 | 00h |
| Offset | Field | Size | Value | Description |
|---|---|---|---|---|
| 0 | bLength | 1 | 07h | |
| 1 | bDescriptorType | 1 | 05h | Endpoint |
| 2 | bEndpointAddress | 1 | 85h | 5 In |
| 3 | bmAttributes | 1 | 02h | Bulk |
| 1..0: Transfer Type | ......10 | Bulk | ||
| 7..2: Reserved | 000000.. | |||
| 4 | wMaxPacketSize | 2 | 0040h | 64 bytes |
| 6 | bInterval | 1 | 00h |
| Offset | Field | Size | Value | Description |
|---|---|---|---|---|
| 0 | bLength | 1 | 07h | |
| 1 | bDescriptorType | 1 | 05h | Endpoint |
| 2 | bEndpointAddress | 1 | 01h | 1 Out |
| 3 | bmAttributes | 1 | 02h | Bulk |
| 1..0: Transfer Type | ......10 | Bulk | ||
| 7..2: Reserved | 000000.. | |||
| 4 | wMaxPacketSize | 2 | 0040h | 64 bytes |
| 6 | bInterval | 1 | 00h |
| Item Tag (Value) | Raw Data |
|---|---|
| Usage Page (Generic Desktop) | 05 01 |
| Usage (Keyboard) | 09 06 |
| Collection (Application) | A1 01 |
| Usage Page (Keyboard/Keypad) | 05 07 |
| Usage Minimum (Keyboard Left Control) | 19 E0 |
| Usage Maximum (Keyboard Right GUI) | 29 E7 |
| Logical Minimum (0) | 15 00 |
| Logical Maximum (1) | 25 01 |
| Report Size (1) | 75 01 |
| Report Count (8) | 95 08 |
| Input (Data,Var,Abs,NWrp,Lin,Pref,NNul,Bit) | 81 02 |
| Report Count (1) | 95 01 |
| Report Size (8) | 75 08 |
| Input (Cnst,Var,Abs,NWrp,Lin,Pref,NNul,Bit) | 81 03 |
| Report Count (5) | 95 05 |
| Report Size (1) | 75 01 |
| Usage Page (LEDs) | 05 08 |
| Usage Minimum (Num Lock) | 19 01 |
| Usage Maximum (Kana) | 29 05 |
| Output (Data,Var,Abs,NWrp,Lin,Pref,NNul,NVol,Bit) | 91 02 |
| Report Count (1) | 95 01 |
| Report Size (3) | 75 03 |
| Output (Cnst,Var,Abs,NWrp,Lin,Pref,NNul,NVol,Bit) | 91 03 |
| Report Count (224) | 95 E0 |
| Report Size (1) | 75 01 |
| Logical Minimum (0) | 15 00 |
| Logical Maximum (1) | 25 01 |
| Usage Page (Keyboard/Keypad) | 05 07 |
| Usage Minimum (Undefined) | 19 00 |
| Usage Maximum (Undefined) | 29 DF |
| Input (Data,Var,Abs,NWrp,Lin,Pref,NNul,Bit) | 81 02 |
| End Collection | C0 |
| Item Tag (Value) | Raw Data |
|---|---|
| Usage Page (Consumer Devices) | 05 0C |
| Usage (Consumer Control) | 09 01 |
| Collection (Application) | A1 01 |
| Report ID (2) | 85 02 |
| Usage Minimum (Consumer Control) | 19 01 |
| Usage Maximum | 2A FF 02 |
| Logical Minimum (0) | 15 00 |
| Logical Maximum (668) | 26 9C 02 |
| Report Size (16) | 75 10 |
| Report Count (2) | 95 02 |
| Input (Data,Ary,Abs) | 81 00 |
| End Collection | C0 |
| Usage Page (Generic Desktop) | 05 01 |
| Usage (System Control) | 09 80 |
| Collection (Application) | A1 01 |
| Report ID (3) | 85 03 |
| Usage Minimum (System Power Down) | 19 81 |
| Usage Maximum | 29 B8 |
| Logical Minimum (0) | 15 00 |
| Logical Maximum (1) | 25 01 |
| Report Size (1) | 75 01 |
| Report Count (56) | 95 38 |
| Input (Data,Var,Abs,NWrp,Lin,Pref,NNul,Bit) | 81 02 |
| End Collection | C0 |
| Item Tag (Value) | Raw Data |
|---|---|
| Usage Page (Vendor-Defined 1) | 06 00 FF |
| Usage (Vendor-Defined 1) | 09 01 |
| Collection (Application) | A1 01 |
| Usage (Vendor-Defined 1) | 09 01 |
| Logical Minimum (0) | 15 00 |
| Logical Maximum (255) | 26 FF 00 |
| Report Size (8) | 75 08 |
| Report Count (64) | 95 40 |
| Input (Data,Var,Abs,NWrp,Lin,Pref,NNul,Bit) | 81 02 |
| Usage (Vendor-Defined 2) | 09 02 |
| Logical Minimum (0) | 15 00 |
| Logical Maximum (255) | 26 FF 00 |
| Report Size (8) | 75 08 |
| Report Count (64) | 95 40 |
| Output (Data,Var,Abs,NWrp,Lin,Pref,NNul,NVol,Bit) | 91 02 |
| End Collection | C0 |
and this is the desc i modify in nrf5 sdk.it can work in mac os well.
Hi,
Could you share your entire project code here? (along with any modifications that you have made)
-Priyanka
