Twi_scanner has fallen into an infinite loop.

[schosdas]

Hello

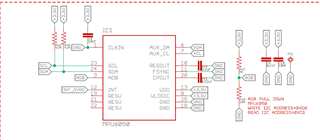

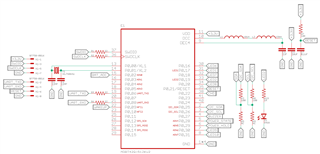

I am working on SDK v17, using nRF52832 (MDBT42Q) and MPU6050 sensor.
I tried TWI_SCANNER because I thought there was a problem getting the value of MPU6050.

However, if I proceed with the scan on this board, I will not be able to escape from 'nrf_twim_event_check' and will have an infinite loop.

This is my main code and modified PCA10040 code.

/**
 * Copyright (c) 2016 - 2020, Nordic Semiconductor ASA
 *
 * All rights reserved.
 *
 * Redistribution and use in source and binary forms, with or without modification,
 * are permitted provided that the following conditions are met:
 *
 * 1. Redistributions of source code must retain the above copyright notice, this
 *    list of conditions and the following disclaimer.
 *
 * 2. Redistributions in binary form, except as embedded into a Nordic
 *    Semiconductor ASA integrated circuit in a product or a software update for
 *    such product, must reproduce the above copyright notice, this list of
 *    conditions and the following disclaimer in the documentation and/or other
 *    materials provided with the distribution.
 *
 * 3. Neither the name of Nordic Semiconductor ASA nor the names of its
 *    contributors may be used to endorse or promote products derived from this
 *    software without specific prior written permission.
 *
 * 4. This software, with or without modification, must only be used with a
 *    Nordic Semiconductor ASA integrated circuit.
 *
 * 5. Any software provided in binary form under this license must not be reverse
 *    engineered, decompiled, modified and/or disassembled.
 *
 * THIS SOFTWARE IS PROVIDED BY NORDIC SEMICONDUCTOR ASA "AS IS" AND ANY EXPRESS
 * OR IMPLIED WARRANTIES, INCLUDING, BUT NOT LIMITED TO, THE IMPLIED WARRANTIES
 * OF MERCHANTABILITY, NONINFRINGEMENT, AND FITNESS FOR A PARTICULAR PURPOSE ARE
 * DISCLAIMED. IN NO EVENT SHALL NORDIC SEMICONDUCTOR ASA OR CONTRIBUTORS BE
 * LIABLE FOR ANY DIRECT, INDIRECT, INCIDENTAL, SPECIAL, EXEMPLARY, OR
 * CONSEQUENTIAL DAMAGES (INCLUDING, BUT NOT LIMITED TO, PROCUREMENT OF SUBSTITUTE
 * GOODS OR SERVICES; LOSS OF USE, DATA, OR PROFITS; OR BUSINESS INTERRUPTION)
 * HOWEVER CAUSED AND ON ANY THEORY OF LIABILITY, WHETHER IN CONTRACT, STRICT
 * LIABILITY, OR TORT (INCLUDING NEGLIGENCE OR OTHERWISE) ARISING IN ANY WAY OUT
 * OF THE USE OF THIS SOFTWARE, EVEN IF ADVISED OF THE POSSIBILITY OF SUCH DAMAGE.
 *
 */
/** @file
 * @defgroup tw_scanner main.c
 * @{
 * @ingroup nrf_twi_example
 * @brief TWI Sensor Example main file.
 *
 * This file contains the source code for a sample application using TWI.
 *
 */

#include <stdio.h>
#include <stdbool.h>
#include <stdint.h>
#include "boards.h"
#include "app_util_platform.h"
#include "app_error.h"
#include "nrf_drv_twi.h"

#include "app_uart.h"
//#include "bsp.h"
#include "nrf_uart.h"
#include "nrf_uarte.h"


#include "nrf_log.h"
#include "nrf_log_ctrl.h"
#include "nrf_log_default_backends.h"

/* TWI instance ID. */
#if TWI0_ENABLED
#define TWI_INSTANCE_ID     0
#elif TWI1_ENABLED
#define TWI_INSTANCE_ID     1
#endif

 /* Number of possible TWI addresses. */
 #define TWI_ADDRESSES      127


//UART
#define MAX_TEST_DATA_BYTES     (15U)                /**< max number of test bytes to be used for tx and rx. */
#define UART_TX_BUF_SIZE 256                         /**< UART TX buffer size. */
#define UART_RX_BUF_SIZE 256                         /**< UART RX buffer size. */


/* TWI instance. */
static const nrf_drv_twi_t m_twi = NRF_DRV_TWI_INSTANCE(TWI_INSTANCE_ID);


/**
 * @brief TWI initialization.
 */
void twi_init (void)
{
    ret_code_t err_code;

    const nrf_drv_twi_config_t twi_config = {
       .scl                = ARDUINO_SCL_PIN,
       .sda                = ARDUINO_SDA_PIN,
       .frequency          = NRF_DRV_TWI_FREQ_100K,
       .interrupt_priority = APP_IRQ_PRIORITY_HIGH,
       .clear_bus_init     = false
    };

    err_code = nrf_drv_twi_init(&m_twi, &twi_config, NULL, NULL);
    APP_ERROR_CHECK(err_code);

    nrf_drv_twi_enable(&m_twi);
}


//UART
void uart_error_handle(app_uart_evt_t * p_event)
{
    if (p_event->evt_type == APP_UART_COMMUNICATION_ERROR)
    {
        APP_ERROR_HANDLER(p_event->data.error_communication);
    }
    else if (p_event->evt_type == APP_UART_FIFO_ERROR)
    {
        APP_ERROR_HANDLER(p_event->data.error_code);
    }
}

#define UART_HWFC APP_UART_FLOW_CONTROL_DISABLED

/**
 * @brief Function for main application entry.
 */
int main(void)
{
    ret_code_t err_code;
    uint8_t address;
    uint8_t sample_data;
    bool detected_device = false;

    APP_ERROR_CHECK(NRF_LOG_INIT(NULL));
    NRF_LOG_DEFAULT_BACKENDS_INIT();

    //bsp_board_init(BSP_INIT_LEDS);

    NRF_LOG_INFO("TWI scanner started.");
    NRF_LOG_FLUSH();
    twi_init();

    //UART
    /*const app_uart_comm_params_t comm_params =
      {
          RX_PIN_NUMBER,
          TX_PIN_NUMBER,
          RTS_PIN_NUMBER,
          CTS_PIN_NUMBER,
          UART_HWFC,
          false,
#if defined (UART_PRESENT)
          NRF_UART_BAUDRATE_115200
#else
          NRF_UARTE_BAUDRATE_115200
#endif
      };

    APP_UART_FIFO_INIT(&comm_params,
                         UART_RX_BUF_SIZE,
                         UART_TX_BUF_SIZE,
                         uart_error_handle,
                         APP_IRQ_PRIORITY_LOWEST,
                         err_code);

    //APP_ERROR_CHECK(err_code);*/


   // bsp_board_led_off(0);
   // bsp_board_led_off(1);
   // bsp_board_led_off(2);
    //bsp_board_led_off(3);
   // bsp_board_led_off(4);

    //printf("\r\nUART example started.\r\n");

    for (address = 1; address <= TWI_ADDRESSES; address++)
    {
        err_code = nrf_drv_twi_rx(&m_twi, address, &sample_data, sizeof(sample_data));
        if (err_code == NRF_SUCCESS)
        {
            detected_device = true;
            NRF_LOG_INFO("TWI device detected at address 0x%x.", address);
            //printf("TWI device detected at address 0x%x.", address);
            //bsp_board_led_on(1);
        }
        NRF_LOG_FLUSH();
    }

    if (!detected_device)
    {
        NRF_LOG_INFO("No device was found.");
        //printf("No device was found.");
        //bsp_board_led_on(2);
        NRF_LOG_FLUSH();
    }



    while (true)
    {
        /* Empty loop. */
    }
}

/** @} */

//Custum_pca10040.h

#ifndef PCA10040_H
#define PCA10040_H

#ifdef __cplusplus
extern "C" {
#endif

//#include "custom_feature.h"
#include "nrf_gpio.h"

#define LEDS_NUMBER    5

#define LED_START      16
#define LED_1          17
#define LED_2          19
#define LED_6          16 //LED 6~10 : BAT_LED
#define LED_7          18
#define LED_8          20
#define LED_9          30
#define LED_10         31
#define LED_STOP       31

#define LEDS_ACTIVE_STATE 0

#define LEDS_INV_MASK  LEDS_MASK

//#define LEDS_LIST { LED_1, LED_2, LED_3, LED_4 }
#define LEDS_LIST {BAT_LED_1, BAT_LED_2, BAT_LED_3, BAT_LED_4, BAT_LED_5} //LED LIST
#define LEDS_LIST2 {BAT_LED_2, BAT_LED_1, BAT_LED_4} //Left LED
#define LEDS_LIST3 {BAT_LED_2, BAT_LED_3, BAT_LED_5} //Right LED

#define BSP_LED_0      LED_1
#define BSP_LED_1      LED_2
#define BSP_LED_2      LED_3
#define BSP_LED_3      LED_4
#define BSP_LED_4      LED_5

#define BUTTONS_NUMBER 1
//#define BUTTONS_NUMBER 4

#define BUTTON_START   28
#define BUTTON_1       28
//#define BUTTON_2       14
//#define BUTTON_3       15
//#define BUTTON_4       16
#define BUTTON_STOP    28
#define BUTTON_PULL    NRF_GPIO_PIN_PULLUP

#define BUTTONS_ACTIVE_STATE 0

#define BUTTONS_LIST { BUTTON_1}

#define BSP_BUTTON_0   BUTTON_1


#define RX_PIN_NUMBER  8
#define TX_PIN_NUMBER  6
#define CTS_PIN_NUMBER 7
#define RTS_PIN_NUMBER 5
#define HWFC           true

#define SPIS_MISO_PIN   28  // SPI MISO signal.
#define SPIS_CSN_PIN    12  // SPI CSN signal.
//#define SPIS_MOSI_PIN   25  // SPI MOSI signal.
#define SPIS_SCK_PIN    29  // SPI SCK signal.

#define SPIM0_SCK_PIN   29  // SPI clock GPIO pin number.
//#define SPIM0_MOSI_PIN  25  // SPI Master Out Slave In GPIO pin number.
#define SPIM0_MISO_PIN  28  // SPI Master In Slave Out GPIO pin number.
#define SPIM0_SS_PIN    12  // SPI Slave Select GPIO pin number.

#define SPIM1_SCK_PIN   2   // SPI clock GPIO pin number.
#define SPIM1_MOSI_PIN  3   // SPI Master Out Slave In GPIO pin number.
#define SPIM1_MISO_PIN  4   // SPI Master In Slave Out GPIO pin number.
#define SPIM1_SS_PIN    5   // SPI Slave Select GPIO pin number.

#define SPIM2_SCK_PIN   12  // SPI clock GPIO pin number.
#define SPIM2_MOSI_PIN  13  // SPI Master Out Slave In GPIO pin number.
#define SPIM2_MISO_PIN  14  // SPI Master In Slave Out GPIO pin number.
#define SPIM2_SS_PIN    15  // SPI Slave Select GPIO pin number.

// serialization APPLICATION board - temp. setup for running serialized MEMU tests
/*#define SER_APP_RX_PIN              23    // UART RX pin number.
#define SER_APP_TX_PIN              24    // UART TX pin number.
#define SER_APP_CTS_PIN             2     // UART Clear To Send pin number.
//#define SER_APP_RTS_PIN             25    // UART Request To Send pin number.

#define SER_APP_SPIM0_SCK_PIN       12     // SPI clock GPIO pin number.
#define SER_APP_SPIM0_MOSI_PIN      13      // SPI Master Out Slave In GPIO pin number
#define SER_APP_SPIM0_MISO_PIN      14     // SPI Master In Slave Out GPIO pin number
#define SER_APP_SPIM0_SS_PIN        23     // SPI Slave Select GPIO pin number
//#define SER_APP_SPIM0_RDY_PIN       25     // SPI READY GPIO pin number
#define SER_APP_SPIM0_REQ_PIN       24     // SPI REQUEST GPIO pin number

// serialization CONNECTIVITY board
#define SER_CON_RX_PIN              24    // UART RX pin number.
#define SER_CON_TX_PIN              23    // UART TX pin number.
//#define SER_CON_CTS_PIN             25    // UART Clear To Send pin number. Not used if HWFC is set to false.
#define SER_CON_RTS_PIN             2     // UART Request To Send pin number. Not used if HWFC is set to false.


#define SER_CON_SPIS_SCK_PIN        27    // SPI SCK signal.
#define SER_CON_SPIS_MOSI_PIN       2     // SPI MOSI signal.
//#define SER_CON_SPIS_MISO_PIN       26    // SPI MISO signal.
#define SER_CON_SPIS_CSN_PIN        23    // SPI CSN signal.
//#define SER_CON_SPIS_RDY_PIN        25    // SPI READY GPIO pin number.
#define SER_CON_SPIS_REQ_PIN        24    // SPI REQUEST GPIO pin number. */

#define SER_CONN_CHIP_RESET_PIN     21    // Pin used to reset connectivity chip


// Arduino board mappings
#define ARDUINO_SCL_PIN             26//27    // SCL signal pin
#define ARDUINO_SDA_PIN             25//26    // SDA signal pin
#define ARDUINO_AREF_PIN            2     // Aref pin
/*#define ARDUINO_13_PIN              25    // Digital pin 13
#define ARDUINO_12_PIN              24    // Digital pin 12
#define ARDUINO_11_PIN              23    // Digital pin 11
#define ARDUINO_10_PIN              22    // Digital pin 10
#define ARDUINO_9_PIN               20    // Digital pin 9
#define ARDUINO_8_PIN               19    // Digital pin 8

#define ARDUINO_7_PIN               18    // Digital pin 7
#define ARDUINO_6_PIN               17    // Digital pin 6
#define ARDUINO_5_PIN               16    // Digital pin 5
#define ARDUINO_4_PIN               15    // Digital pin 4
#define ARDUINO_3_PIN               14    // Digital pin 3
#define ARDUINO_2_PIN               13    // Digital pin 2
#define ARDUINO_1_PIN               12    // Digital pin 1
#define ARDUINO_0_PIN               11    // Digital pin 0

#define ARDUINO_A0_PIN              2     // Analog channel 0
#define ARDUINO_A1_PIN              3     // Analog channel 1
#define ARDUINO_A2_PIN              4    // Analog channel 2
#define ARDUINO_A3_PIN              5    // Analog channel 3
#define ARDUINO_A4_PIN              28    // Analog channel 4
#define ARDUINO_A5_PIN              29    // Analog channel 5
#define ARDUINO_A6_PIN              30    // Analog channel 6
#define ARDUINO_A7_PIN              31    // Analog channel 7
*/

#define APP_BTN_1 	28 //POWER_STATE pin
//#define BAT_ADC		3 //A0
//#define BUZZER_PIN 	27

#define BAT_LED_1   16
#define BAT_LED_2   18
#define BAT_LED_3   20
#define BAT_LED_4   30
#define BAT_LED_5   31

#define Pairing_LED  19

#define POWER_OFF  29 //POWER_HOLD pin

#define bat_state	22 //battery charge state


#ifdef __cplusplus
}
#endif

#endif // PCA10040_H

Testing with the NRF52DK board will work normally. Is there a possible hardware problem?
Can I know the cause and solution of this problem?

Thank you.

=========================================================================

In nRF52DK, there is the same problem if I connect the SCL, SDA pin to 26,25 and debug it. Is this a problem with the nrf52832 pin? Should I redesign my hardware?

Thank you.

[Jared]

Hi,

nrf_twim_event_check

 This is done multiple times in the twim driver, it would be better if you could specify the function call where it's stuck. Also, could you upload your design files of the custom board?

regards

Jared

[schosdas]

Hello, Jared.

This is part of the circuit diagram.

I have tested PWM, I2C, and GPIO I/O at p0.25 of nRF52dk.

The other pins have no problem, but all functions have failed on this pin. I think the datasheet says GPIO I/O, but I don't know why...

Thank you.

[Jared]

Hi,

The HW looks OK. I would appreciate that you answer my previous question though:

Jared said:

This is done multiple times in the twim driver, it would be better if you could specify the function call where it's stuck.

Also, in your code, you only check what is returned by nrf_drv_twi_rx if there is a NRF_SUCCESS, could you check what is returned if there is not a success, meaning !NRF_SUCCESS.

In nRF52DK, there is the same problem if I connect the SCL, SDA pin to 26,25 and debug it. Is this a problem with the nrf52832 pin? Should I redesign my hardware?

 I tried using pins 25,26 and did not observe any issue.

regards

Jared

[schosdas]

Thank you for helping me.
I will try the way you told me.

Thank you.

[schosdas]

I got another nRF52DK board and tested it.
This board works perfectly on the same pin and same code...
I'll look for the error the way you told me.

Thank you.

[Jared]

Hi,

Did you check what is returned by the application from the function call when it's not a success and it's running on the custom board?



schosdas said:

I got another nRF52DK board and tested it.
This board works perfectly on the same pin and same code...

 This might indicate that your old DK is not functional.. Anyways, I think we should focus on the custom board on this ticket. You can open a new ticket regarding the different behavior between your old DK and the new one.

regards

Jared
